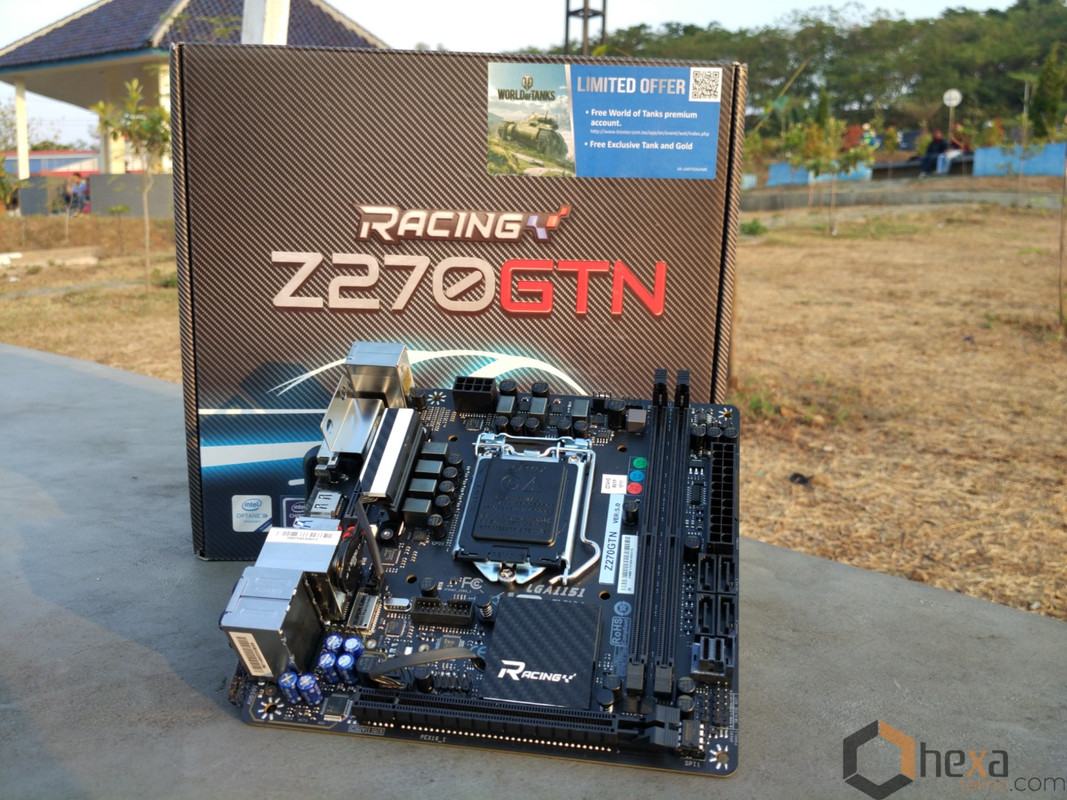

Biostar Z270GTN

Tahun ini kita disuguhi dengan platform mainstream desktop LGA1151 dengan arsitektur Kabylake yang menggunakan transistor 14nm. Intel merilis berbagai chipset untuk mendukung platform tersebut, salah satunya Z270. Chipset Z270 diperuntukkan sebagai seri chipset tertinggi pada platform LGA1151 yang juga mendukung praktik overclocking.

Pada Maret 2017 Biostar mengumumkan dua seri motherboard mini-ITX berbasis platform Core generasi 7 yaitu Z270GTN dan B250GTN. Kedua motherboard memiliki fisik yang sama hanya saja pada Z270GTN mendukung overclocking dan diklaim mampu berjalan pada rating clock memori DDR4-3200 sedangkan B250GTN tidak mendukung overclocking dan hanya mampu berjalan pada DDR4-2400. Z270GTN merupakan salah satu motherboard Z270 dengan form factor mini-ITX termurah di pasaran saat ini (di bawah 2 jutaan).

Spesifikasi Teknis

Chipset Intel Z270
CPU SUPPORT 7th & 6th Gen Intel® Core™ i7 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i5 LGA 1151 Processor
7th & 6th Gen Intel® Core™ i3 LGA 1151 Processor
7th & 6th Gen Intel® Pentium® LGA 1151 Processor
7th & 6th Gen Intel® Celeron® LGA 1151 Processor
Maximum CPU TDP (Thermal Design Power) : 95Watt
MEMORY Support Dual Channel DDR4 3200(OC)/2400/ 2133/ 1866 MHz
2 x DDR4 DIMM Memory Slot
Max. Supports up to 32GB Memory
* DDR4 2400 for 7th Generation Intel® Core™ Processor Family
EXPANSION SLOT 1 x PCI-E x16 3.0 Slot
1 x PCI-E M.2 Key E Slot for M.2 type 2230 Wi-Fi card
STORAGE 4 x SATA3 Connector
Support SATA RAID: 0,1,5,10
1 x U.2 32Gb/s Connector, support PCI-E Storage(Intel® Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(Intel® Optane Technology ready)(on the back of the motherboard)
USB 4 x USB 3.0 Port
1 x USB 3.0 Header
2 x USB 2.0 Port
1 x USB 2.0 Header
LAN Intel I219V – Gigabit Ethernet PHY
Support Super LAN Surge Protection
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
CODEC Realtek ALC892 8-Channel Blu-ray Audio
Support HD Audio
Support Biostar Hi-Fi
REAR I/O 1 x PS/2 Keyboard/Mouse
4 x USB 3.0 Port
2 x USB 2.0 Port
1 x HDMI Connector, resolution up to 4096 x 2160 @30Hz, compliant with HDMI 1.4b
1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz
1 x RJ-45 Port
5 x Audio Connector
1 x S/PDIF Out Port
INTERNAL I/O 1 x USB 3.0 Header
1 x USB 2.0 Header
4 x SATA3 6Gb/s Connector
1 x U.2 32Gb/s Connector, support PCI-E Storage(Intel® Optane Technology ready)
1 x M.2 Key M 32Gb/s Connector, support M.2 type 2260/ 2280 SATA 6Gb/s & PCI-E Storage(Intel® Optane Technology ready)(on the back of the motherboard)
1 x Front Audio Header
1 x Front Panel Header
1 x CPU Fan Header
1 x System Fan Header
2 x 5050 LED Header
H/W MONITORING CPU / System Temperature Monitoring
CPU / System Fan Monitoring
Smart / Manual CPU / System Fan Control
System Voltage Monitoring
DIMENSION Mini ITX Form Factor Dimension: 17cm x 17cm ( W x L )
OS SUPPORT Support Windows 10(x64) for Intel 7th Generation Processor
※Support Windows 7 / 8.1(x64) / 10(x64) for Intel 6th Generation Processor
BUNDLE SOFTWARE Racing GT Utility
BullGuard
Intel Rapid Storage Technology
ACCESSORIES 4 x SATA Cable
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
FEATURES VIVID LED DJ
5050 LED FUN ZONE
Supports PURO Hi-Fi
Supports 100% Solid capacitor
Supports BIOS Online Update
