SuperO C7Z270CG-L

Platform LGA1151 merupakan plaform mainstream desktop Intel terbaru yang digunakan untuk prosesor dengan arsitektur Skylake dan Kabylake. Berbagai chipset telah dirilis oleh Intel untuk platform tersebut, salah satunya adalah Z270. Chipset Z270 merupakan seri chipset tertinggi untuk platform mainstream desktop Intel saat ini.

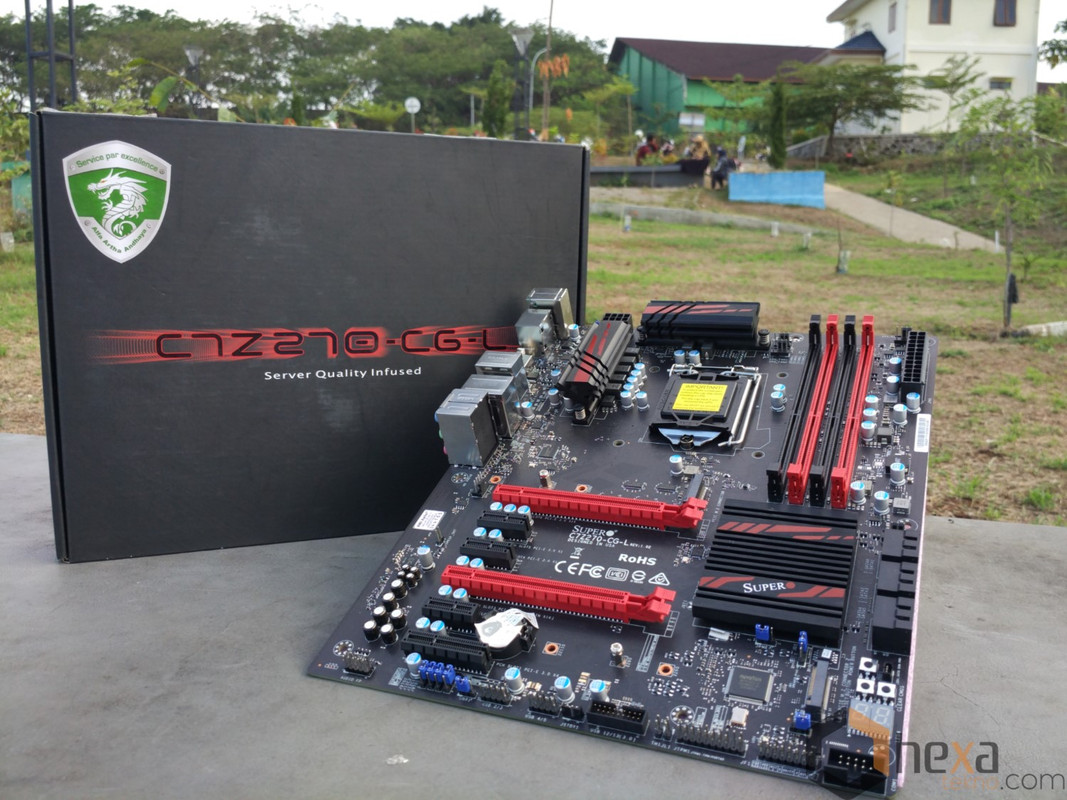

Pada Januari 2017 lalu Supermicro merilis jajaran motherboard SuperO yang dikhususkan untuk pasar konsumer. Sebagai pemain lama di dunia server dan bisnis, kehadiran Supermicro ke dunia motherboard konsumer tentu memancing rasa penasaran. Salah satu motherboard SuperO yang hadir kali ini adalah SuperO C7Z270-CG-L yang diposisikan sebagai motherboard seri Core Gaming. SuperO C7Z270-CG-L dibanderol dengan harga kurang dari 3 jutaan rupiah.

Spesifikasi Teknis

Product SKU C7Z270-CG-L
Form Factor ATX
Dimensions 12″ x 9.6″, (30.5 cm x 24.4 cm)
CPU Core / Cache Intel® LGA 1151(H4) 7th/6th Gen Core i7/i5/i3/Pentium®/ Celeron®processors (up to 120W TDP)
Memory Capacity 4x 288-pin DDR4 DIMM slots
Supports up to 64GB DDR4 Non-ECC Un-Buffered memory (UDIMM) in 4 DIMM slots
Memory Type Frequency up to DDR4 2400MHz DDR4 Non-ECC Un-buffered 288-pin (UDIMM) gold-plated DIMMs
Supports Intel® overclocking Extreme Memory Profile (XMP) DIMM (Up to 2800+MHz)
DIMM Sizes 16GB, 8GB, 4GB
Memory Voltage 1.2V
Chipset Intel® Z270 Express Chipset
On-Board SATA SATA3.0 (6Gbps) via Intel® Z270 Express Chipset
6x SATA (RAID 0, 1, 5, 10)
On-Board Audio RealTek ALC1150 High Definition Audio
Network Controllers Intel® i219V Single Port Gigabit Ethernet
Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
Input/Output SATA 6x SATA3 (6Gbps) ports
LAN 1x RJ45 Gigabit Ethernet LAN port
USB 6x USB 3.0 ports (4 rear, 2 via headers)
6x USB 2.0 ports (2 rear, 4 via headers)
1x USB 3.1 Type A port (rear)
1x USB 3.1 Type C port (rear)
Input/Output Audio 7.1 HD Jacks
Display 1x DVI-D, 1x HDMI 1.4b, 1 DP (DisplayPort) 1.2
Support Triple display, Support 4K display devices
Keyboard/Mouse PS/2 connector for mouse and keyboard
Serial Port / Header 1x COM port (header)
Temperature Monitoring for CPU and chassis environment
CPU thermal trip support
Thermal Monitor 2 (TM2) support
PECI
PCI-Express 2x PCIe 3.0 x16 slots (run at 16/NA or /8/8)
1x PCIe 3.0 x4 slots
3x PCIe 3.0 x1 slots
2x PCIe 3.0 x4 M.2 (2260/2280/22110)(M-key)
BIOS Type 128Mb SPI Flash EEPROM with AMI BIOS
BIOS Features DMI (SMBIOS) 2.7
ACPI 5.0
USB Keyboard support
Software SuperDoctor® V
Watch Dog
Power Configurations ACPI Power Management
Keyboard Wakeup from Soft-Off
Power-on mode for AC power recovery
Voltage +12V, +3.3V, +5V, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, Chassis intrusion header, Monitors CPU voltages, VBAT
FAN Total of 5 fan headers supporting up to 5 fans
5 fans with tachometer status monitoring
Status monitor for speed control
Status monitor for on/off control
Low noise fan speed control
Pulse Width Modulated (PWM) fan connectors
LED Suspend static indicator LED
Other Features Chassis intrusion detection
Chassis intrusion header
RoHS
