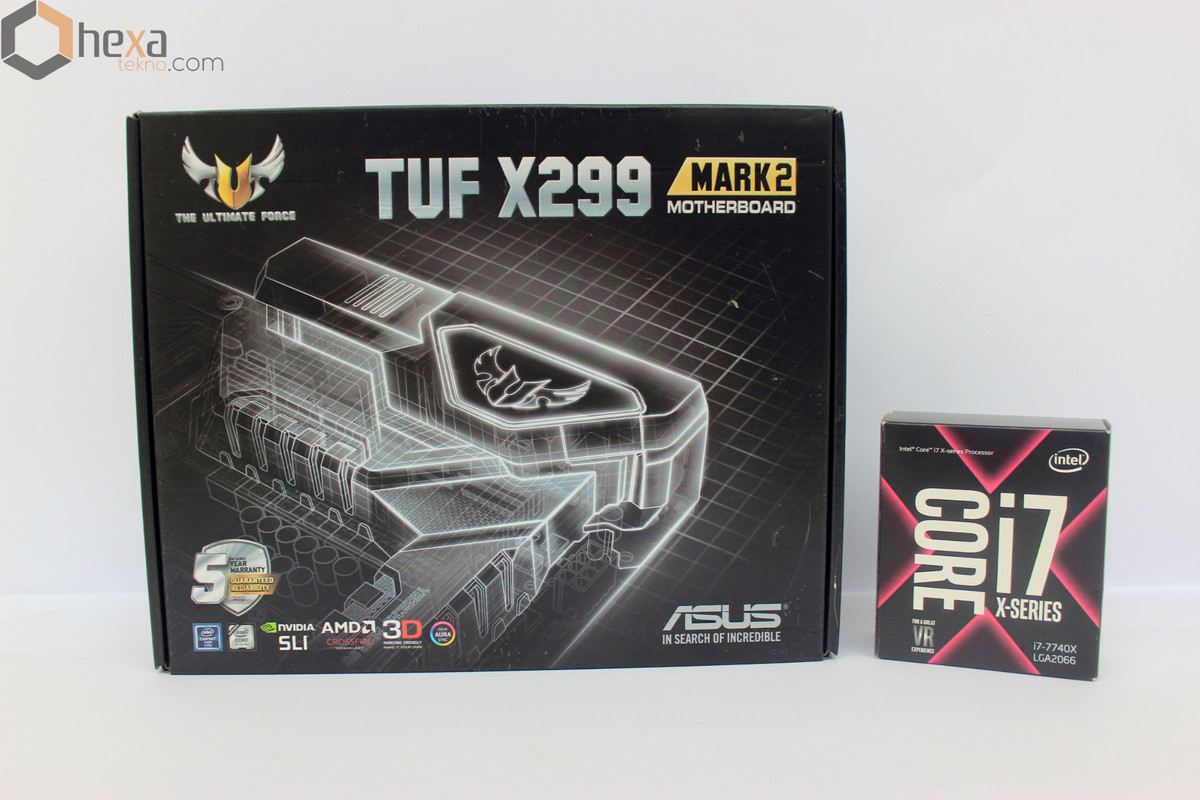

Core i7-7740X dan TUF X299 Mark 2

Platform LGA 2066 yang dirilis oleh Intel pada Agustus 2017 lalu merupakan platform high-end desktop (HEDT) terbaru yang diposisikan untuk menggantikan LGA 2011-v3. LGA 2066 diusung dengan chipset X299 yang menggantikan X99 pada LGA 2011-v3. Pada platform HEDT Intel terbaru kali ini Intel mengandalkan arsitektur Skylake untuk prosesor dengan 6 core atau lebih dan arsitektur Kabylake untuk prosesor dengan 4 core.

Kali ini, Hexatekno berkesempatan menjajal prosesor Core i7-7740X yang diusung sebagai prosesor berarsitektur Kabylake tercepat yang dibuat oleh Intel. Core i7-7740X memiliki spesifikasi yang mirip dengan Core i7-7700K namun dengan prosesor grafis bawaan (IGP) yang dinonaktifkan, clock dasar yang lebih tinggi (4.3 GHz vs 4.2 GHz), dam dukungan memory yang lebih kencang (DDR4-2666 vs DDR4-2400). Core i7-7740X juga memiliki TDP yang lebih tinggi dibandingkan sepupunya Core i7-7700K yang berada di platform mainstream desktop (112W vs 95W).

Spesifikasi Core i7-7740X

Processor Name Intel® Core™ i7-7740X X-series processor
Cores/Threads 4/8
Base Clock Speed (GHz) 4.3
Intel® Turbo Boost Max Technology 3.0 Enabled
Intel® Turbo Boost Max Technology 3.0 Frequency (GHz) N/A
L3 Cache 8MB
Memory Support 2 channels DDR4-2666
PCIe Lanes off CPU 16
TDP 112W
Socket LGA 2066
Pricing $339

Pada pengujian kali ini kami menggunakan motherboard dari Asus yaitu Asus TUF X299 Mark 2. TUF X299 Mark 2 merupakan salah satu seri motherboard Asus dari jajaran The Ultimate Force yang diklaim memiliki durabilitas maksimal. Tidak tanggung-tanggung bahkan Asus berani memberikan garansi 5 tahun terhadap jajaran produk TUF mereka. Asus TUF X299 Mark 2 mendukung penggunaan prosesor socket LGA 2066 hingga Core i9-7980XE dan 8 slot memory DDR4 yang mendukung quad-channel hingga 128 GB.

Spesifikasi Asus TUF X299 Mark 2

CPU Intel® Socket 2066 Core™ X-Series Processors* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Chipset Intel® X299
Memory Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
Multi-GPU Support Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Expansion Slots 44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
28-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16, x16/x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
16-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
Storage Intel® X299 Chipset :
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology
Intel® Rapid Storage Technology 15 support
Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID
Intel® Optane™ Memory Ready
LAN Intel® I219V, 1 x Gigabit LAN Controller(s), featuring Turbo LAN
ASUS Turbo LAN Utility
 Audio Realtek® ALC S1220A 8-Channel High Definition Audio CODEC
– Impedance sense for front and rear headphone outputs
– Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
– Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature :
– Optical S/PDIF out port(s) at back panel
– Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
– Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
– Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
– Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
USB Ports ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (Type-A)
Intel® X299 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, , 4 at mid-board)
Intel® X299 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
Special Features OC Design – ASUS PRO Clock Technology

TUF Features:
TUF ENGINE! Power Design :
– 7 +1 Digital Phase Power Design
– TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
Ultimate COOL! Thermal Solution :
– TUF Thermal Armor
– Thermal Radar 3
Safe & Stable! Guardian Angel :
– TUF ESD Guards 2
– TUF LANGuard
AURA :
– Aura Lighting Control
– Aura Lighting Effects Synchronization with compatible ASUS ROG devices
ASUS Exclusive Features :
– MemOK!
– AI Suite 3
– Ai Charger
– ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
– Turbo LAN
File Transfer
– Cloud GO!
– File Transfer
ASUS EZ DIY :
– ASUS EZ Flash 3
– ASUS UEFI BIOS EZ Mode
– Multi-language BIOS
ASUS Q-Design :
– ASUS Q-Shield
– ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
– ASUS Q-Slot
– ASUS Q-DIMM
– ASUS Q-Connector

Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 Type-A
4 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
Internal I/O Ports 1 x AAFP connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x VROC_HW_Key
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x Thunderbolt header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s) (Q-Connector)
1 x MemOK! button(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
2 x 3D Mount screw port(s)
1 x CPU_OV jumper
Accessories User’s manual
ASUS Q-Shield
1 x Vertical M.2 bracket set
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x SLI HB BRIDGE(2-WAY-M)
1 x Q-Connector
1 x TUF Certification card(s)
1 x TUF 5 Year Warranty manual(s) (by region)
1 x TUF Inside sticker(s)(white)
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability WfM 2.0, DMI 3.0, WOL by PME, PXE
Support Disc Drivers
ASUS Utilities
EZ Update
Anti-virus software (OEM version)
Operating System Windows® 10 64-bit
Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Note 1. When using 28-lane & 16-lane CPUs, PCIEX16_3 will be disabled.
