Intro
AMD resmi memperkenalkan jajaran prosesor terbaru Ryzen 7 yang berbasis arsitektur Zen. Pasca kehadiran prosesor AMD tersebut di pasaran, para produsen motherboard ternama turut meramaikannya dengan memperkenalkan jajaran motherboard yang tentunya dirancang dengan chipset X370 terbaru yang mendukung Ryzen. Hexatekno.com kebetulan kedatangan salah satu motherboard berchipset X370 dari salah satu produsen yang cukup terkenal di pasar indonesia yaitu Biostar. Kali ini Biostar memperkenalkan motherboard terbaiknya dengan chipset X370 yang telah siap untuk menyambut AMD Ryzen Perlu diketahui Biostar X370GT7 ini adalah salah satu seri teringgi motherboard chipset X370 yang dikeluarkan oleh Biostar. Motherboard ini di banderol dengan harga yang cukup ekonomis (sekitar 2,7Jt Rupiah saat artikel ini ditulis). Penasaran dengan bagaimana peforma dari motherboard Biostar X370GT7 ini, Berikut kami hadirkan ulasan lengkap mengenai motherboard terbaru dari Biostar ini!
Sistem Pengujian
- Proccesor : AMD Ryzen 7 1700X
- Motherboard : Biostar X370GT7 Bios ver. X37AG310
- Memori : Galax OC LAB 2x8GB DDR4 4000Mhz C19
- PSU : Cooler Master V650
- HSF : Phanteks PH-TC14PE
- VGA : Asus Nvidia GTX 950 OC Edition
- SSD : Samsung EVO 840 120GB
- Thermal Paste : Grizzly Kryonaut
- Benchtable : Openbenchtable HWBOT World Tour Edition
- Proccesor : AMD Ryzen 7 1700X
- Motherboard Biostar X370GT7
- Memory : Galax OC Lab DDR4 4000 C19
- PSU Cooler Master V650
- HSF : Phanteks PH-TC14PE
- VGA : Asus Nvidia Geforce GTX 950 OC Edition
- SSD : Samsung EVO 840 120GB
8. Thermal Paste : Grizzly Kryonaut
9.Benchtable : Openbenchtable HWBOT World Tour Edition
Spesifikasi teknis

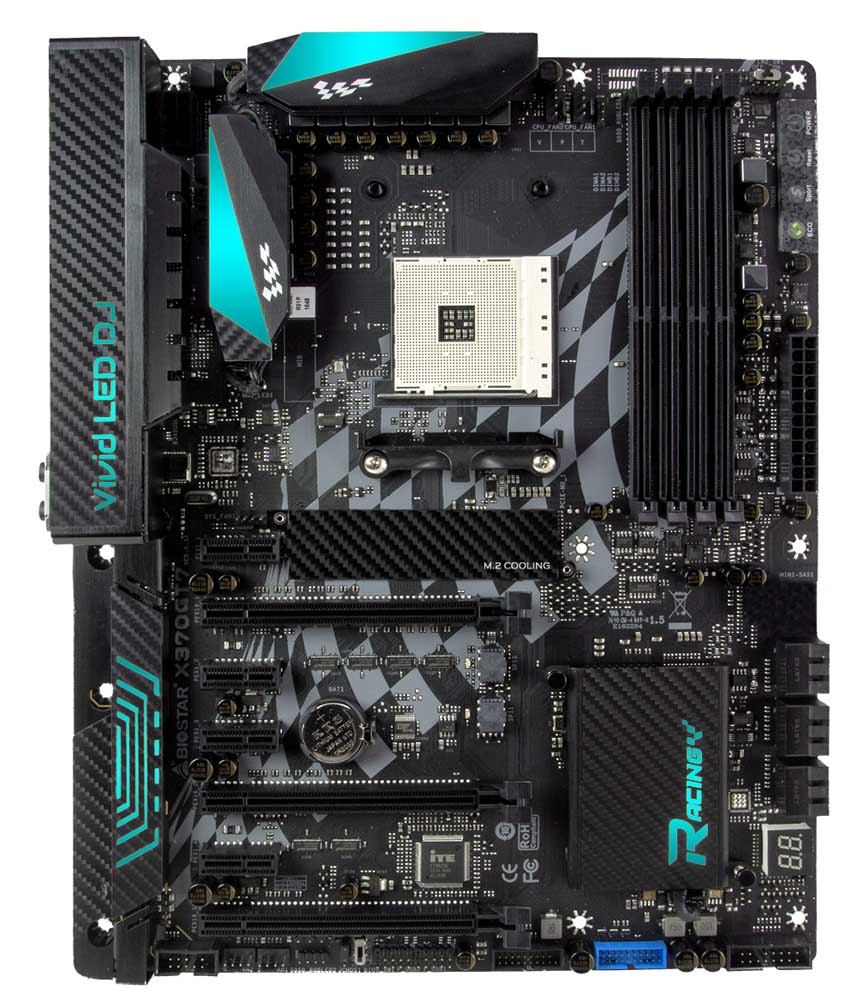

Biostar X370GT7 ini hadir dengan desain yang cukup unik bertema racing. Biostar juga melengkapi motherboard baru ini dengan segudang fitur canggih dan paket penjualan yang cukup lengkap. Berikut Spesifikasi lengkap dari motherboard Biostar X370GT7 :
| Chipset | AMD X370 | |||||||||||||||||||||||||||||||||||
| CPU SUPPORT | AMD A-series APU / Ryzen CPU / NPU for Socket AM4 Maximum CPU TDP (Thermal Design Power) : 95Watt |
|||||||||||||||||||||||||||||||||||
| MEMORY | Support Dual Channel DDR4 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133/ 1866 MHz Support Non-ECC & ECC Un-buffered DIMM Memory modules 4 x DDR4 DIMM Memory Slot Max. Supports up to 64GB Memory * DDR4 2667 for AMD Ryzen CPU Ryzen – DDR Maximum Frequency Support Table(For better DDR4 compatibility, it is recommended to follow the table below to install DDR4 modules. Please refer to memory support list for more details.)
SR:Single-rank DIMM, 1R x4 or 1R x8 |
|||||||||||||||||||||||||||||||||||
| EXPANSION SLOT | 2 x PCI-E x16 3.0 Slot(x16 + NA or x8 + x8 for Ryzen CPU, x8 + NA for APU / NPU) 1 x PCI-E x16 2.0 Slot(x4) 3 x PCI-E x1 2.0 Slot |
|||||||||||||||||||||||||||||||||||
| STORAGE | 6 x SATA3 Connector Support SATA RAID: 0,1,10 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage * M.2 (32Gb/s) : The bandwidth is depended on CPU, Ryzen is 32Gb/s ; APU & NPU is 16Gb/s. |
|||||||||||||||||||||||||||||||||||
| USB | 1 x USB 3.1 Gen2 Type-C Port 1 x USB 3.1 Gen2 Port 4 x USB 3.1 Gen1 Port 2 x USB 3.1 Gen1 Header 2 x USB 2.0 Header |
|||||||||||||||||||||||||||||||||||
| LAN | Realtek RTL8118AS – 10/100/1000 Controller Support Super LAN Surge Protection |
|||||||||||||||||||||||||||||||||||
| MULTI GRAPHICS | 2-way AMD Crossfire Technology | |||||||||||||||||||||||||||||||||||
| INTEGRATED VIDEO | By CPU model Supports DX12 Supports HDCP |
|||||||||||||||||||||||||||||||||||
| CODEC | Realtek ALC1220 8-Channel Blu-ray Audio Support Biostar Hi-Fi |
|||||||||||||||||||||||||||||||||||
| REAR I/O | 1 x PS/2 1 x USB 3.1 Gen2 Type-C Port 1 x USB 3.1 Gen2 Port 4 x USB 3.1 Gen1 Port 1 x DisplayPort Connector, resolution up to 4096 x 2160 @60Hz 1 x HDMI Connector, resolution up to 4096 x 2160 @60Hz 1 x DVI-D Connector, resolution up to 1920 x 1200 @60Hz 1 x RJ-45 Port 5 x Audio Connector 1 x S/PDIF Out Port |
|||||||||||||||||||||||||||||||||||
| INTERNAL I/O | 2 x USB 3.1 Gen1 Header 2 x USB 2.0 Header 6 x SATA3 6Gb/s Connector 1 x M.2 Key M 32Gb/s Connector, support M.2 type 2242/ 2260/ 2280 SATA 6Gb/s & PCI-E Storage 1 x Front Audio Header 1 x Front Panel Header 2 x CPU Fan Header 3 x System Fan Header 1 x LN2 Switch 2 x 5050 LED Header |
|||||||||||||||||||||||||||||||||||
| H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU / System Fan Control System Voltage Monitoring |
|||||||||||||||||||||||||||||||||||
| DIMENSION | ATX Form Factor Dimension: 30.5cm x 24.4cm ( W x L ) | |||||||||||||||||||||||||||||||||||
| OS SUPPORT | Support Windows 7(x64) / 10(x64) | |||||||||||||||||||||||||||||||||||
| BUNDLE SOFTWARE | Racing GT Utility FLY.NET BullGuard |
|||||||||||||||||||||||||||||||||||
| ACCESSORIES | 4 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
|||||||||||||||||||||||||||||||||||
| FEATURES | VIVID LED DJ VIVID LED ARMOR 5050 LED FUN ZONE Digital Power+ Lightning Charger M.2 Cooling Protection Supports Double Hi-Fi GT TOUCH Dual BIOS Supports 100% Solid capacitor Supports Rapid Debug3 Supports BIOS-Flasher Supports BIOS Online Update |
