Pada April 2018 lalu Intel merilis chipset H310, B360, dan H370 sebagai suplemen dari chipset Z370 yang sudah ada dari akhir tahun lalu untuk mendukung prosesor Intel Coffee Lake. Ketiga chipset baru tersebut ditujukan bagi pengguna yang tidak memikirkan mengenai overclocking serta berorientasi budget.

intel roadmap Roadmap Intel

Kali ini Hexatekno kedatangan sebuah motherboard dari MSI yang mengaplikasikan chipset B360 dari Intel yaitu B360M Mortar Titanium. Motherboard ini mendukung lini CPU Intel Coffeelake dengan socket LGA1151 serta dukungan memori DDR4-2666.

Spesifikasi Teknis



Processor Supports 8th Generation Intel® Core™ Processors, and Intel® Pentium® Gold and Celeron® Processors for Socket LGA1151
Chipset Intel® B360 Chipset
Memory
  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 2666/ 2400/ 2133 MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memorye
  • Supports Intel® Extreme Memory Profile (XMP)
Slots
  • 2 x PCIe 3.0 x16 slots (support x16/x4 modes)
  • 2 x PCIe 3.0 x1 slots
Onboard Graphics
  • 1 x DVI-D port, supports a maximum resolution of 1920×1200@60Hz
  • 1 x DisplayPort port 1.2, supports a maximum resolution of 4096X2304@60Hz
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096×2160@30Hz
Storage Intel® B360 Chipset

  • 4 x SATA 6Gb/s ports
  • 2 x M.2 slots (Key M)
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1
    • M2_2 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices2
    • Intel® Optane™ Memory Ready ,supported on M2_23
  1. SATA2 port will be unavailable when installing SATA M.2 SSD in M2_1 slot.
  2. M2_2 slot will be unavailable when installing a PCIe device in PCI_E4 slot.
  3. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB Intel® B360 Chipset

  • 3 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-C and 1 Type-A ports on the back panel, 1 Type-C internal connector)
  • 2 x USB 3.1 Gen1 (SuperSpeed USB) ports available through the internal USB connector
  • 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connector)
Audio

Dual Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1 x Intel I219-V Gigabit LAN controller
Internal Connectors
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.1 Gen2 Type-C port
  • 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports)
  • 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 3 x 4-pin system fan connectors
  • 1 x Front panel audio connector
  • 2 x Front panel connectors
  • 1 x 5050 RGB LED strip 12V connector
  • 1 x Thunderbolt add-on card connector
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper
Back Panel Ports
  • PS/2 Combo Port
  • DisplayPort
  • LAN Port
  • USB 3.1 Gen2 Type A
  • HD Audio Connectors
  • 4 x USB 2.0 Port
  • DVI-D Port
  • HDMI Port
  • USB 3.1 Gen2 Type C
  • Optical S/PDIF OUT
Dimensions
  • 9.6 in. x 9.6 in. (24.3 cm x 24.3 cm)
  • Micro-ATX Form Factor
Mounting 8 mounting holes
Operating System Support for Windows® 10 64-bit
Box Content

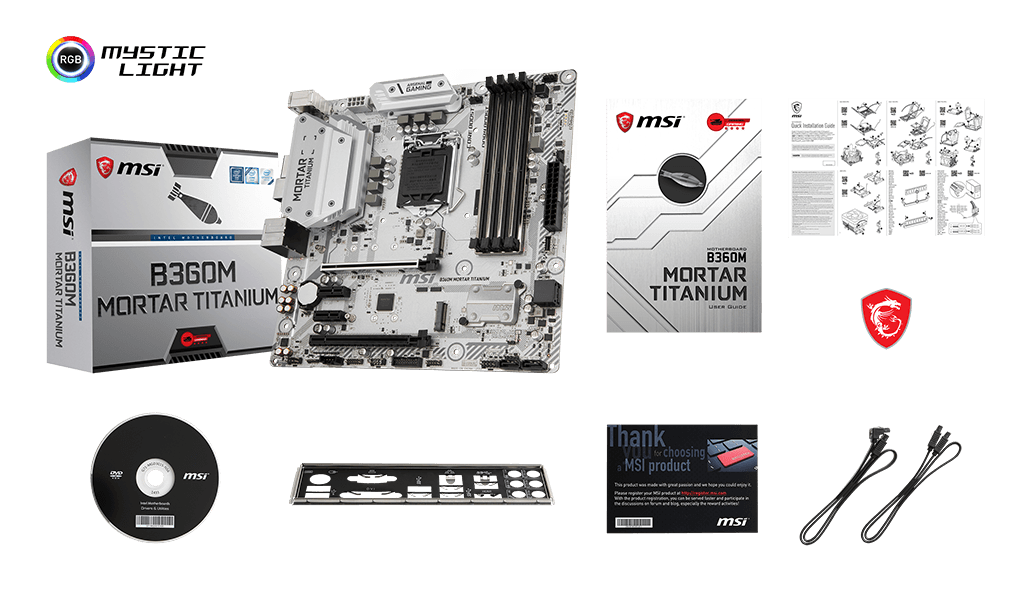

Contents
